名稱：Quartus移動公廁控制器Verilog代碼遠程云端平臺

軟件：Quartus

語言：Verilog

代碼功能：

設計基于FPGA的移動公廁控制器的設計,要求在景區內設立兩個移動公廁A、B,用紅綠、黃三種顏色共6盞燈來代表女，男，暫用。要求顯示為A綠,B紅5秒;A黃、B紅10秒;A紅,B綠4秒;A紅,B黃8秒。用數碼管倒計時顯示當前時間。

FPGA代碼Verilog/VHDL代碼資源下載：www.hdlcode.com

本代碼已在遠程云端平臺驗證，遠程云端平臺如下，其他遠程云端平臺可以修改管腳適配：

演示視頻：

設計文檔：

1. 工程文件

2. 程序文件

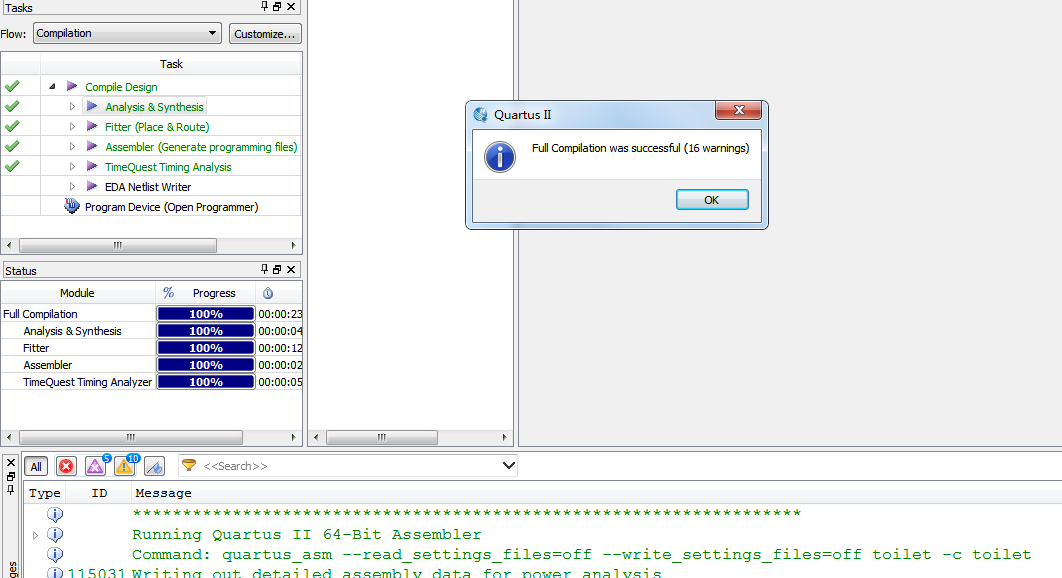

3. 程序編譯

4. RTL圖

5. 管腳分配

6. 仿真文件

7. 仿真圖

整體仿真圖，可以看到6個燈的對應變化

數碼管控制的仿真圖

由于無法登錄遠程平臺，只好手繪原理圖如下：

部分代碼展示:

//公廁控制
module?toilet(
input?clk,//1Khz
input?RST,//復位按鍵,為1緊急狀態，為0正常狀態
output?main_red,//A燈
output?main_green,//A燈
output?main_yellow,//A燈
output?branch_red,//B燈
output?branch_green,//B燈
output?branch_yellow,//B燈
output?[3:0]?weixuan,//數碼管位選
output?[7:0]?duanxian//數碼管段選
);
?wire?clk_1Hz;
?wire?[7:0]?main_green_BCD;
?wire?[7:0]?main_yellow_BCD;
?wire?[7:0]?main_red_BCD;
?wire?[7:0]?branch_green_BCD;
?wire?[7:0]?branch_yellow_BCD;
?wire?[7:0]?branch_red_BCD;
?wire?[7:0]?main_data_out;
?wire?[7:0]?branch_data_out;
?
wire?main_red_led;//A燈
wire?main_green_led;//A燈
wire?main_yellow_led;//A燈
wire?branch_red_led;//B燈
wire?branch_green_led;//B燈
wire?branch_yellow_led;//B燈
assign?main_red=main_red_led;//A燈
assign?main_green=main_green_led;//A燈
assign?main_yellow=main_yellow_led?;//A燈
assign?branch_red=branch_red_led;//B燈
assign?branch_green=branch_green_led;//B燈
assign?branch_yellow=branch_yellow_led?;//B燈?
//分頻模塊
div?div100
(
.?clk(clk),
.?clk_out(clk_1Hz)
);
//調整時間
wire?[7:0]main_green_time;
wire?[7:0]main_yellow_time;
wire?[7:0]branch_green_time;
wire?[7:0]branch_yellow_time;
assign?main_green_time=8'd59;//A綠燈59s
assign?main_yellow_time=8'd10;//A黃燈時間設置為10秒
assign?branch_yellow_time=8'd8;//B黃燈時間設置為8秒
assign?branch_green_time=8'd49;//B綠燈49s
///////////////////////////////
reg?[7:0]?display_main;
reg?[7:0]?display_branch;
////////////////////////////////
//交通燈控制模塊
led?led(
.?clk_1Hz(clk_1Hz),
.?RST(RST),//緊急按鍵,為1緊急狀態，為0正常狀態
.?main_red(main_red_led),//A燈
.?main_green(main_green_led),//A燈
.?main_yellow(main_yellow_led),//A燈
.?branch_red(branch_red_led),//B燈
.?branch_green(branch_green_led),//B燈
.?branch_yellow(branch_yellow_led),//B燈
.?main_green_time(main_green_time),
.?main_yellow_time(main_yellow_time),
.?branch_green_time(branch_green_time),
.?branch_yellow_time(branch_yellow_time),
.?main_green_BCD(main_green_BCD),//綠燈時間計數
.?main_yellow_BCD(main_yellow_BCD),//黃燈時間計數
.?main_red_BCD(main_red_BCD),//紅燈時間計數
.?branch_green_BCD(branch_green_BCD),//綠燈時間計數
.?branch_yellow_BCD(branch_yellow_BCD),//黃燈時間計數
.?branch_red_BCD(branch_red_BCD)//紅燈時間計數
);
//顯示數據生成模塊
shumaguan_data?shumaguan_data(
.?clk(clk),
.?main_red(main_red_led),//A燈
.?main_green(main_green_led),//A燈
.?main_yellow(main_yellow_led),//A燈
.?branch_red(branch_red_led),//B燈
.?branch_green(branch_green_led),//B燈
.?branch_yellow(branch_yellow_led),//B燈
.?main_green_BCD(main_green_BCD),//綠燈時間計數
.?main_yellow_BCD(main_yellow_BCD),//黃燈時間計數
.?main_red_BCD(main_red_BCD),//紅燈時間計數
.?branch_green_BCD(branch_green_BCD),//綠燈時間計數
.?branch_yellow_BCD(branch_yellow_BCD),//黃燈時間計數
.?branch_red_BCD(branch_red_BCD),//紅燈時間計數
.?main_green_time(main_green_time),
.?main_yellow_time(main_yellow_time),
.?branch_green_time(branch_green_time),
.?branch_yellow_time(branch_yellow_time),
.?main_data_out(main_data_out),//A數碼管數據顯示
.?branch_data_out(branch_data_out)//B數碼管數據顯示
);
display?display
(
.?clk(clk),
.?main_data(main_data_out),//A數碼管數據顯示
.?branch_data(branch_data_out),//B數碼管數據顯示
.?weixuan(weixuan),//位選,高電平亮
.?duanxian(duanxian)//段選,高電平亮
);
endmodule
